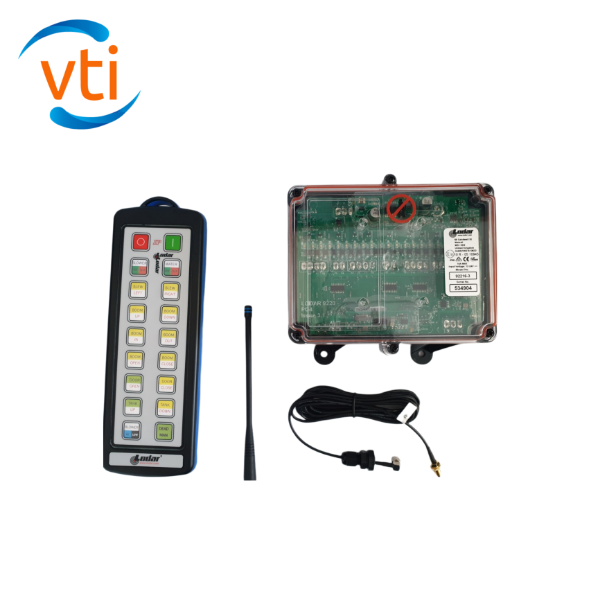

Lodar 16F Complete System

16 Function IP Remote Control System with Deep Receiver 15 amp FET’s and External Aerial.

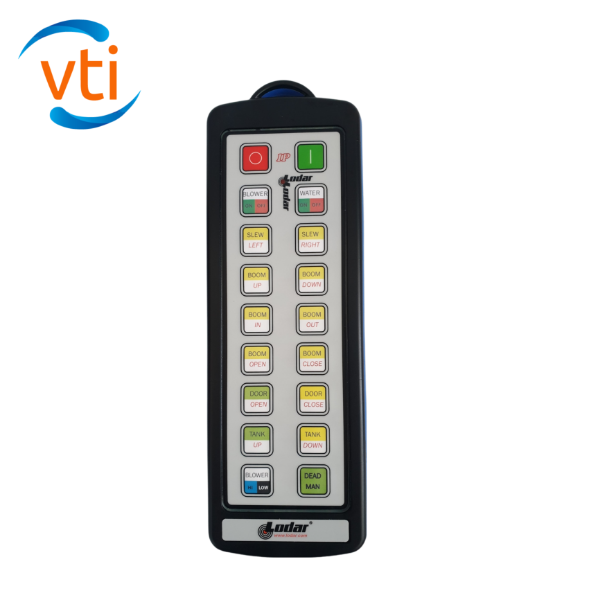

16 Function IP Remote Control System

• Functions: 16
• Switch: Tactile Dome
• Battery: 4 x AAA alkaline manganese (6 Volts)
• Current draw, Quiescent: 15 micro amps
• Current draw, Operating: 24 milliamps
• Protection, Reverse Polarity: Protected
• IP Rating:  67
• Registration Codes: Over 16 million
• Temp. Range: -20°C to + 55°C (-4°F to + 131°F)
• Range: 60 m (200 ft.) from the Receiver, when driving a momentary output, without signal drop out. 300 m (1,000 ft.) option available
• Transmitted Power: 1 mW Typical
• Supply: 12/24VDC

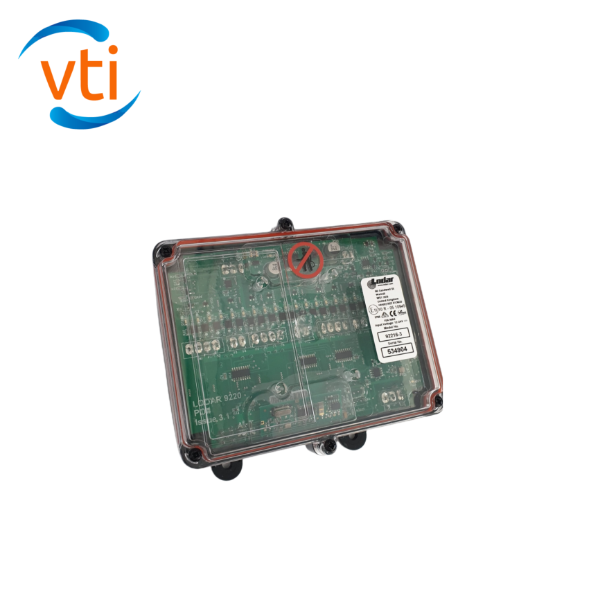

Deep Receiver

• Functions: 16
• Material: Black PVC Base& Clear Lid
• IP Rating: 67
• Switching: 15-amp FET’s
• Master: Optional
• Size: 149mm x 119mm x 69mm
• Transmitters: Mini/Standard/IP
• Range: 45 m (150 ft.) with Mini Transmitter150 m (500 ft.) option available; 60 m (200 ft.) with Standard Transmitter 300 m (1,000 ft.) option available.

Clear Lid allows sight of LEDs for fault finding. 2cm deeper base to allow for extra wiring. Same footprint as Standard Receiver.

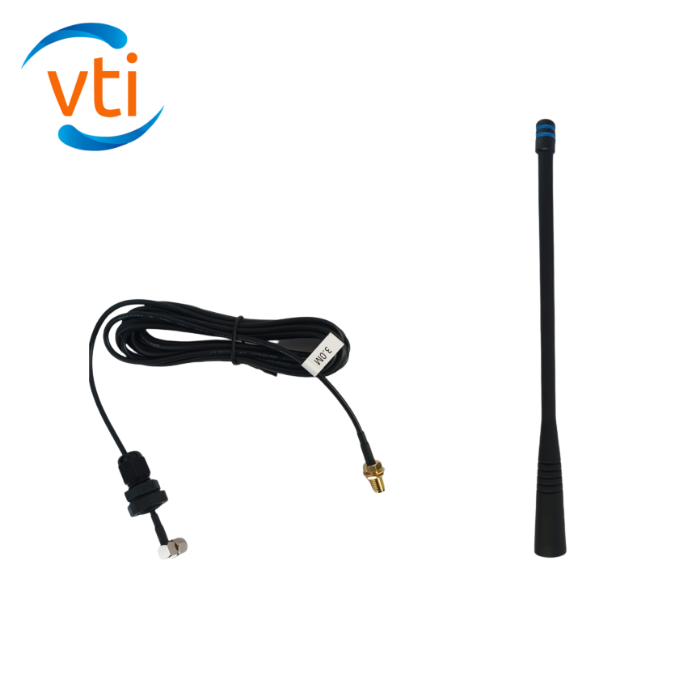

External Aerial

An external aerial maintains full operating range of 60/300 metres (200/1,000 ft.) if performance is compromised. An external aerial is simply added to the SMA fitting on the PCB. An aerial will NOT increase the stated range.
