- Number of digital outputs: ≤ 19
- Number of digital inputs: ≤ 14
- Fieldbus interface: –
- Supply voltage: 12/24 VDC
- Frequency band: 2.4 GHz
- Operational temperature: -25°C to +70°C / ~-15°F to +160°F
- Protection category: IP67
- Dimensions (W x H x D)
(height incl. antenna): 127 x 186 x 57 mm ~5.0 x 7.3 x 2.2 in

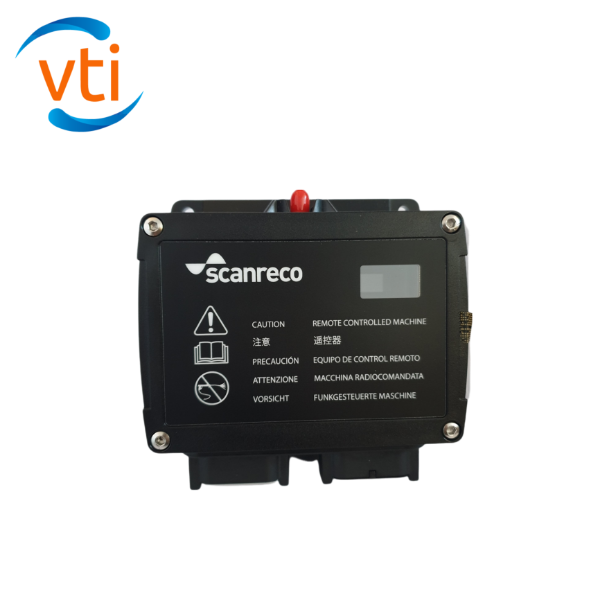

Scanreco G5-M19 Receiver
$887.00
The G5-M19 is a receiver with 19 MOSFET outputs of which 14 can be configured as digital inputs. The maximum load for each individual output is 3A and the total load of the system is limited to 10A. The connections of the receiver unit are protected against short circuit and transients. Connections are made via two 12-pin Deutsch connectors.
G5-M19 Receiver Specifications
Available on back-order
