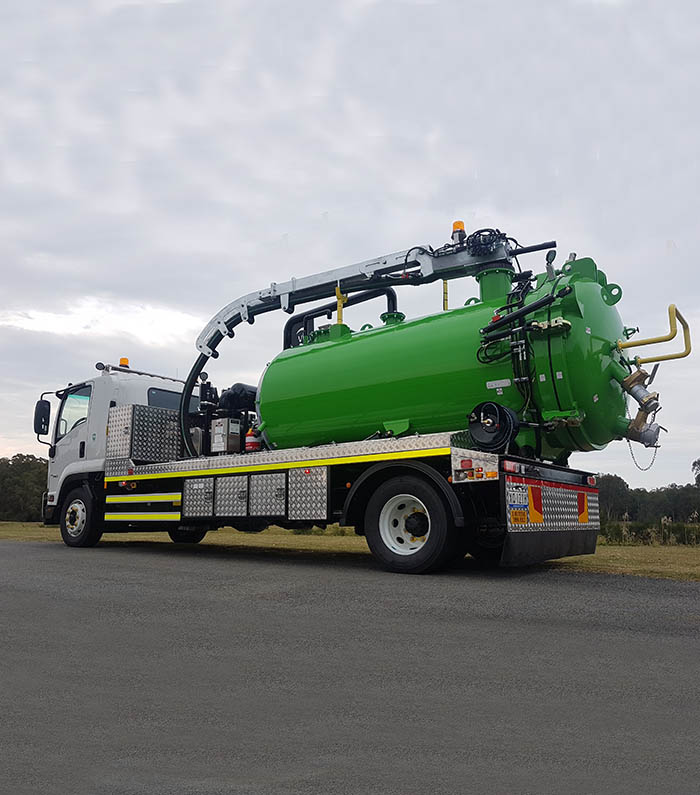

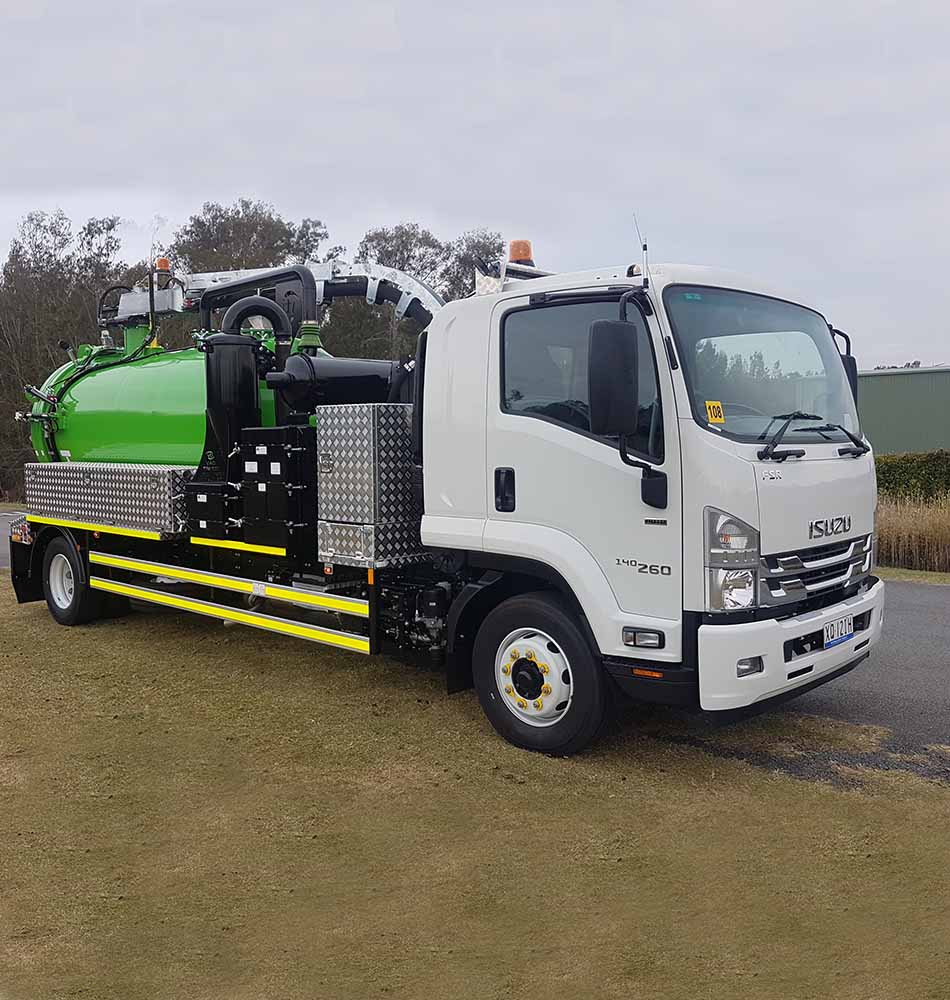

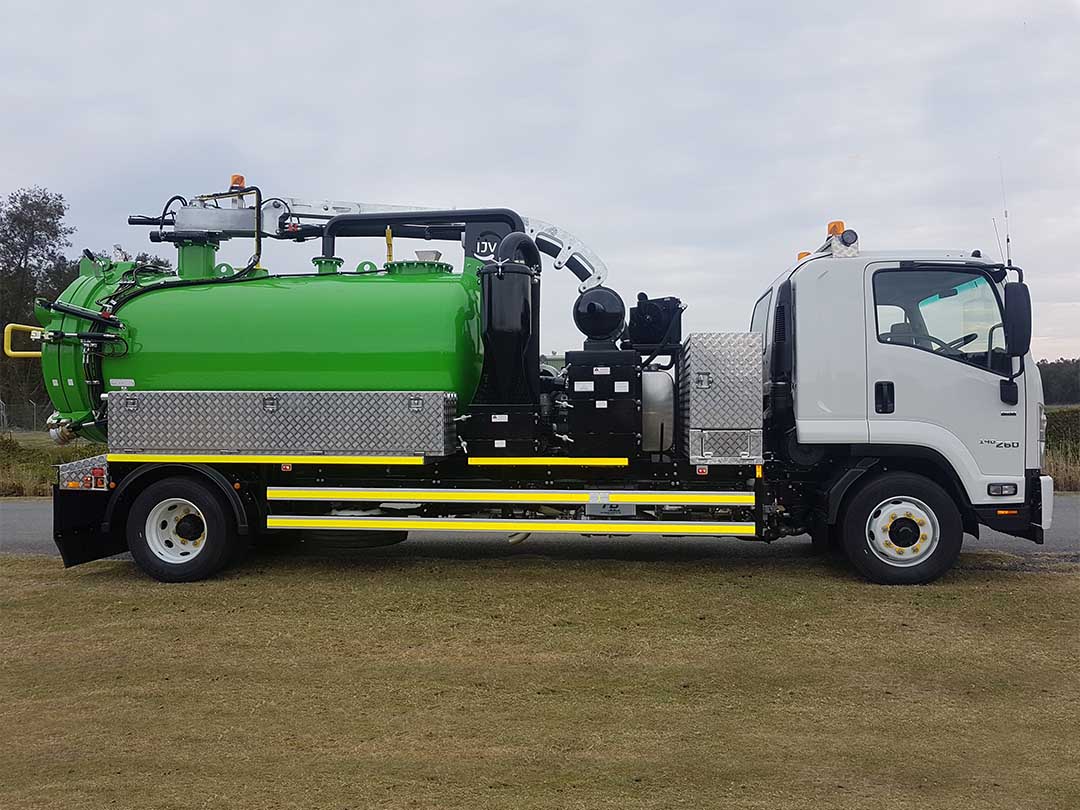

HYDRO VACUUM
EXCAVATION TRUCK
4000L / 4500L – 1100 ADROIT / 1500 HERCULES
AUSTRALIAN OWNED AND MANUFACTURED
4000L/4500L – 1100 ADROIT /
1500 HERCULES
HYDRO EXCAVATION TRUCK
Big Brother to the VTI 3000L – 1100/1500 offering the same advantages with a small footprint enabling it to access and navigate through tight areas, with a larger spoil capacity and longer work time.
Purpose designed and built for non-destructive digging, drill mud recovery, underground services location, and daylighting. Recover wet and solid materials, liquids, and slurries.
Making it the ideal solution for use by plumbers, electricians, surveyors, service locations specialists, civil, and Government entities when conducting early works on projects of any size or nature.
USED FOR:
- Bulk non-destructive digging / hydro excavations
- Drill mud recovery
- Underground services location and daylighting
- Recovery of wet and solid materials, liquids, and slurries
- Bulk excavation

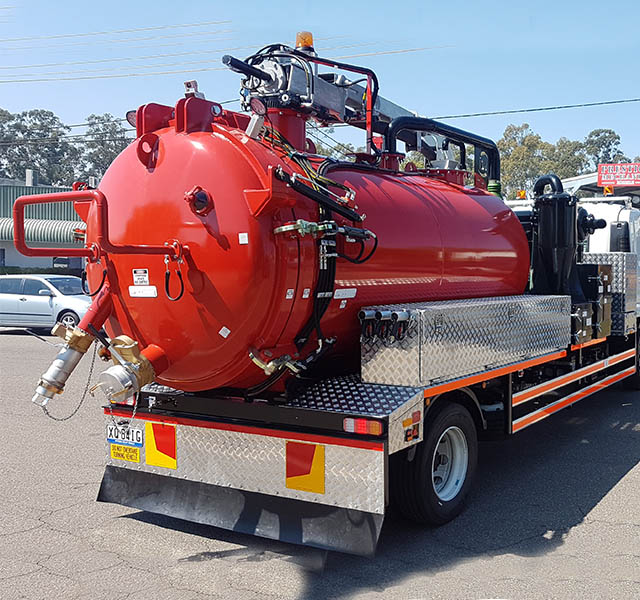

Spoil Tank And Blower
- 4000L or 4500L spoil tank capacity (8mm thickness) – designed and certified to AS1210
- Jurop style locking system for spoil tank door
- Jurop CT 180 – 1100cfm (14” Hg @ 50%)
- Available with Jurop PVT 400, high mercury, air injected – 1500cfm
- Butterfly travel and relief valves fitted for safety and compliance
- Jurop pneumatic 4-way valve – vacuum & pressure
- Day (high) and night (low) option for blower operation
WATER TANK AND SYSTEM
- 2000L capacity – Water tank position at front of spoil tank or baffled side tank mounted
- 2” stainless steel water fill system
- Water level sight indicator/s
- Manway access to water tank (front spoil tank option only)
- Comet RWS6040 water pump – 21l/m at 4000psi
- Heavy duty hose reel complete with 25m 3/8 high pressure water hose with quick release fittings (dual hose reels option available)
- Lances – 1500mm, 2100mm and flexi (0.55 PA nozzles)
GENERAL
- Full-length aluminum trays (VTI unique hose storage) accommodate up to 30m of 4” suction hose
- Storage boxes for tooling and equipment (VTI integrated lance holder box)
- Side intrusion bars with high visibility reflective tape
- Starter and battery isolation switches with lock out facility. Emergency stops fitted in key position on tray
- LED rotating lights and work lights fitted to truck and spoil tank
- Interlocks and warning alarms fitted to park brake, spoil tank and boom (if fitted)
- 20m x 4” polyurethane vacuum hose with fittings of choice
- 9kg fire extinguisher with mounting bracket and notification decal
- Easy to clean baghouse and cyclone setup, accessible from the ground
- Also available with power pack (CAT 60HP motor)
HYDRAULIC SYSTEM
- Dual PTOs with piston pumps and Danfos PVG32 proportional control valve
- 170ltr Oil tank with twin oil coolers
- All cylinders fitted with over centre valves
4″ BOOM ASSEMBLY
- Full hydraulic remote controlled boom with 2 x Lodar remotes
- 4” boom suction hose
- Plugin boom pendant control for override of boom function
- 2 x LED work lights mounted at the front of the boom (if fitted)
