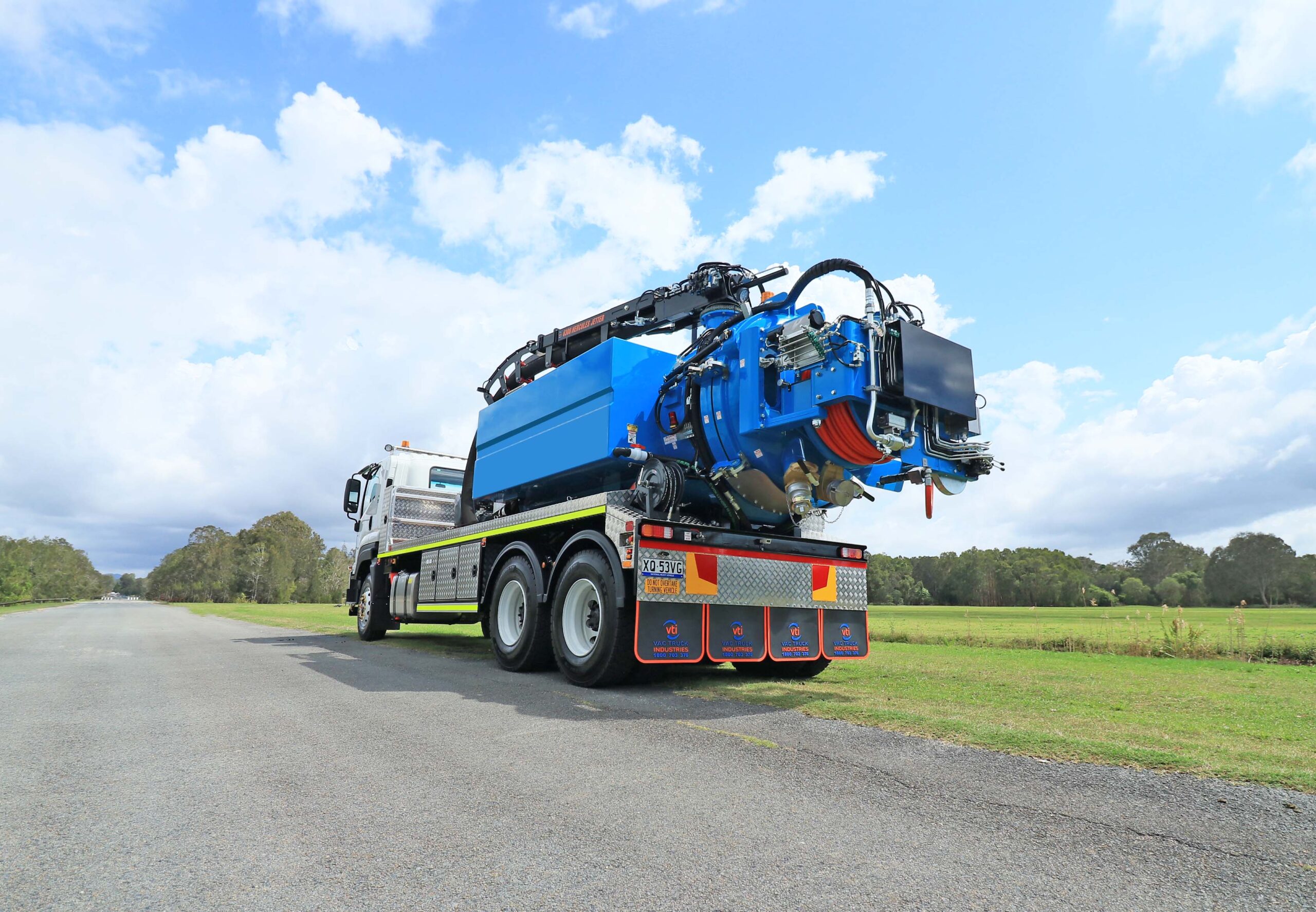

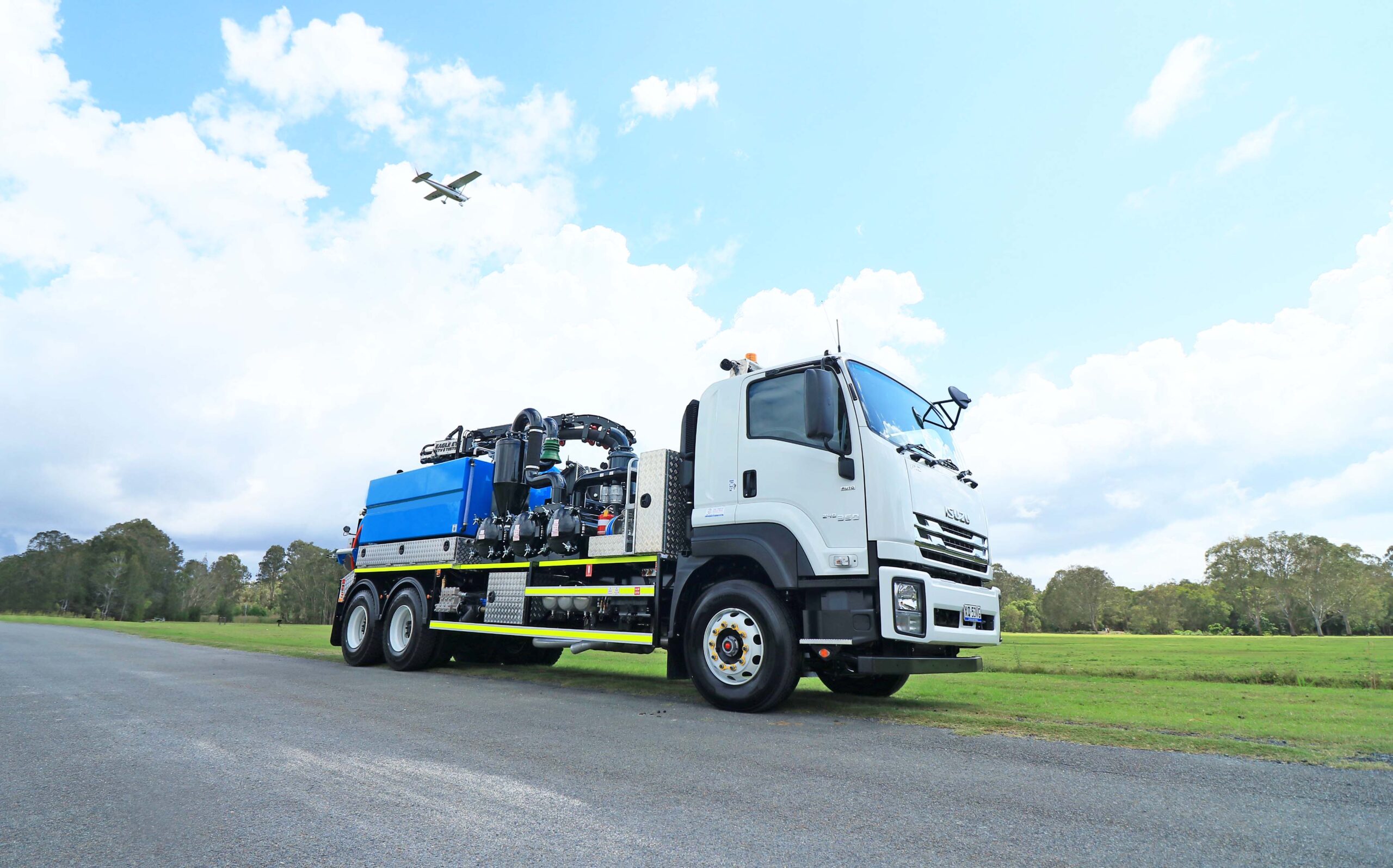

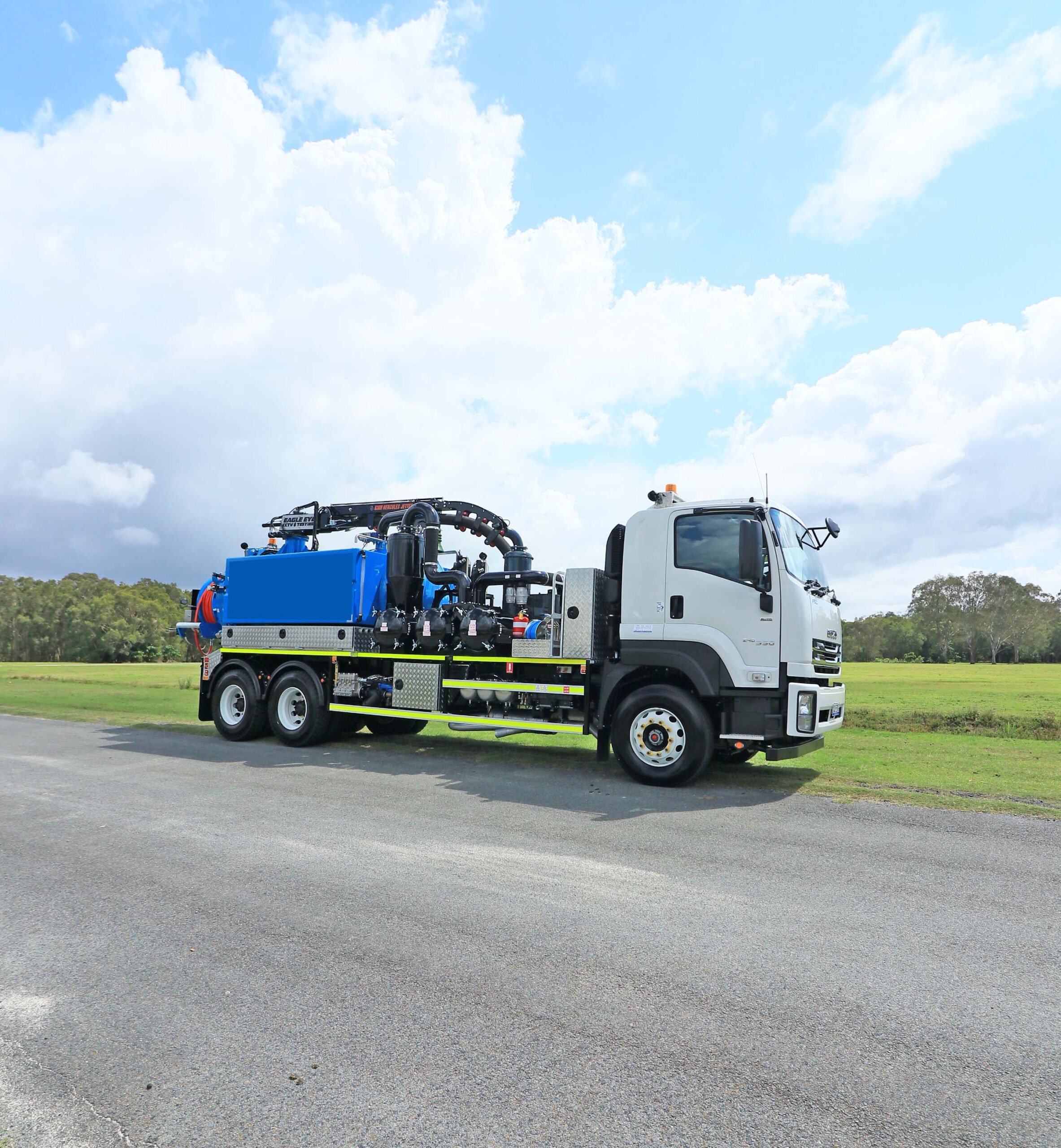

HYDRO VACUUM

EXCAVATION TRUCK

6300L – 1500 / 2500/ 3700 JETTER COMBOS

AUSTRALIAN OWNED AND MANUFACTURED

6300L – 1500 / 2500 / 3700 POWER COMBINATIONS & JETTER

With the addition of the High Pressure Jetter Combo, the 6300L – 2500 Hercules takes hydro excavation to another level. Need to clear a blocked drain? With the addition of the Jetter system, this unit can flush, clear and clean pipes easily removing the collection of debris, roots, obstructions and water with high volume vacuum extraction.

Common usage includes:

Bulk non-destructive digging / hydro excavations
Underground services and pipeline locations
Confined space excavation through over and under obstacles at distance, overhead at height or underground at basement level.
Mud and drill spoil recovery
Removal and excavation of slurries and thick sludge
Removal of solid and liquid waste
High pressure drain cleaning of storm water and sewer lines

Spoil Tank And Blower

6,300L spoil tank capacity (10mm thickness) designed and certified to AS1210 – Class C
Jurop style locking system for spoil tank door
Jurop PVT 400, high mercury, air injected – 1500cfm (28’’ Hg)
Jurop pneumatic 4-way valve – vacuum and pressure (Hercules only)
Butterfly travel and relief valves fitted for safety and compliance
Day (high) and night (low) option for blower operation

WATER TANK AND SYSTEM

2900L capacity – water tanks combined
Water tanks baffled for safety and stability
2’ stainless steel water fill system with isolation taps
Water level sight indicators on both tanks
Comet TW8036 water pump – 32l/m at 3600 psi
Jetter available in two options
- 122l/m or 267l/m jetter water pump – (2300 psi) pump with pressure relief and safety valves
Jurop hydraulic swiveling stainless steel jetter hose reel mounted on rear door with up to 180m of ¾’’ or 150 of 1’’ jetter hose

GENERAL

VTI full-length passenger side aluminium hose tray storage – with tie down points and straps for load containment
Unique VTI driver side storage box for tooling with integrated 3 lance holder box
Side intrusion bars with high visibility reflective tape
Starter battery isolation switches with lockout facility. Emergency stops fitted in a key position on the tray
LED rotating lights and work lights fitted to the truck and spoil tank
Interlocks and warning alarms fitted to park brake, spoil tank, and boom
20m x 4′ or 5′ polyurethane vacuum hose with fittings of choice
9kg fire extinguisher with mounting bracket & notification decal
Full mine site compliant safety decals
Easy to clean baghouse and cyclone setup, accessible from the ground
Angled base on cyclone and baghouse for easy washout
