HYDRO VACUUM

EXCAVATION TRUCK

8000L JETTER COMBO UNITS

AUSTRALIAN OWNED AND MANUFACTURED

8000L – JETTER COMBO HYDRO EXCAVATION TRUCK

The 8000L Jetter Combo Unit is here. This unit has been designed and built to outlast and outperform the operational demands of the construction, civil, electrical, infrastructure, mining, drilling, oil, and gas industries.

Allowing for more time on-site and less time to travelling to dispose of waste, this unit was built to deliver faster results, shorter lead times and deliver a higher return on investment for your business. With the addition of the Jetter Combo, you can high pressure flush, clear and clean drains and pipes removing from site any collected debris, roots, obstructions and water with high volume vacuum extraction.

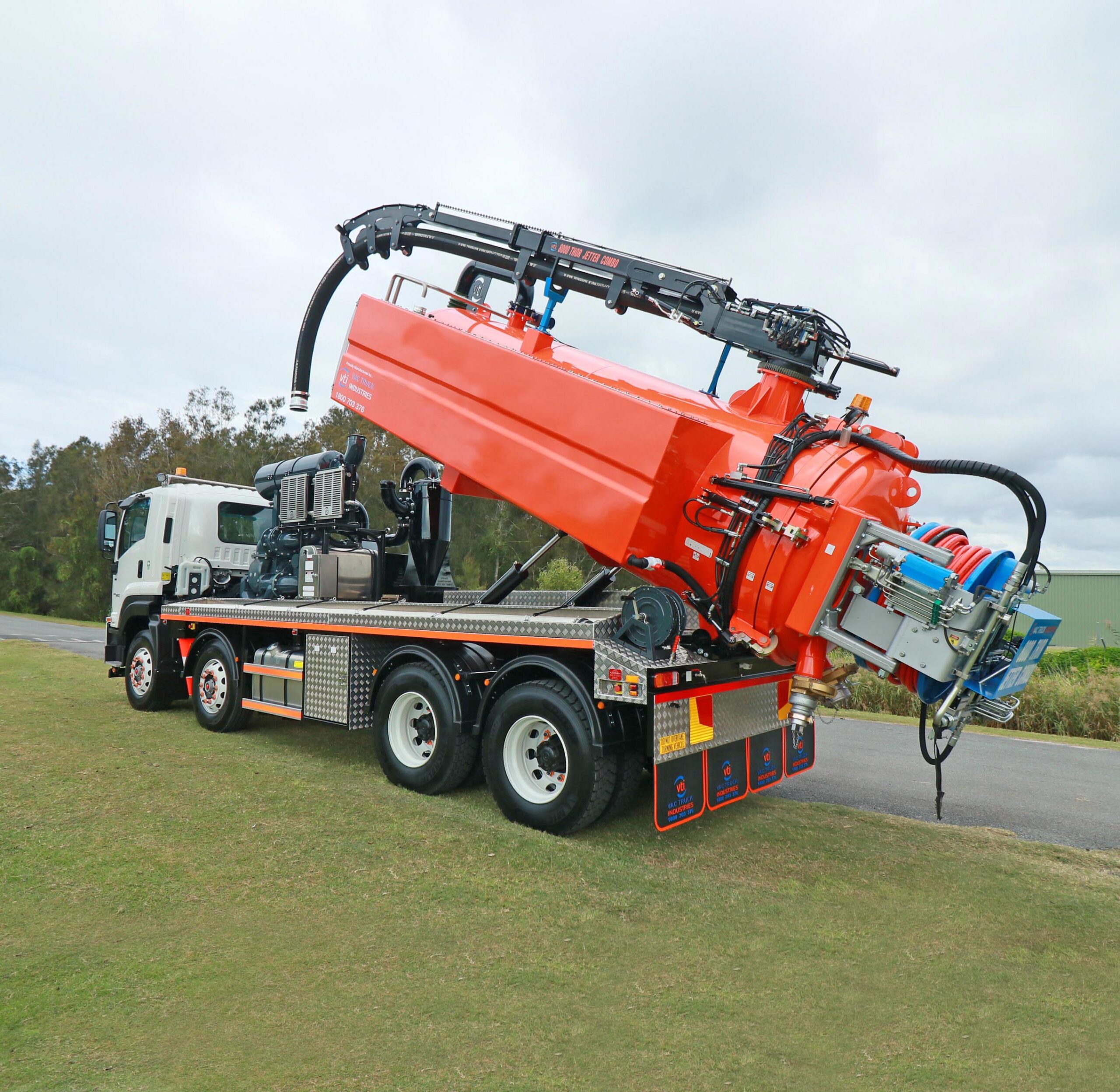

8000L Hydro Vacuum Excavation Jetter Combo Truck

Technical Specifications

Spoil Tank And Blower

8000L spoil tank capacity (10mm thickness) – designed and certified to AS1210 – Class C
Jurop style locking system for spoil tank door
Thor series – Jurop Helix 750, high mercury, air injected – 2500 cfm (28′ Hg)
Butterfly travel and relief valves fitted for safety and compliance
Day (high) and night (low) option for blower operation

WATER TANK AND SYSTEM

4000L capacity – water tanks combined
Water tanks baffled for safety and stability
2″ stainless steel water fill system with isolation taps
Water level sight indicators on both tanks
Comet TW8036 water pump – 32l/m at 3600psi
Heavy-duty hose reel complete with 25m 3/8 high-pressure water hose with quick release fittings (dual hose reels and pump options available)
Lances – 1500mm, 2100mm and flexi (0.90 Suttner nozzles) Jetter
267l/m jetter water pump – (2300 psi) pump with pressure relief and safety valves
Jurop hydraulic swiveling stainless steel jetter hose reel mounted on rear door with 150 of 1’’ jetter hose

GENERAL

VTI full-length passenger side aluminum hose tray storage – with tie-down points and straps for load containment
Unique VTI driver side storage box for tooling and equipment with integrated 3 lance holder box
Side intrusion bars with high visibility reflective tape
Starter and battery isolation switches with lockout facility
Emergency stops fitted in a key position on the tray
LED rotating lights and work lights fitted to the truck and spoil tank
Interlocks and warning alarms fitted to park brake, spoil tank, and boom
20m x 4” polyurethane vacuum hose with fittings of choice
9kg fire extinguisher with mounting bracket and notification decal
Full mine site compliant safety decals
Easy to clean baghouse and cyclone setup, accessible from the ground
Angled base on cyclone and baghouse for easy washout
