HYDRO VACUUM

EXCAVATION TRUCK

8000L – 1500 HERCULES / 2500 THOR / 3770 GOLIATH

AUSTRALIAN OWNED AND MANUFACTURED

8000L – 1500 HERCULES / 2500 THOR / 3770 GOLIATH VAC TRUCK POWER COMBINATIONS

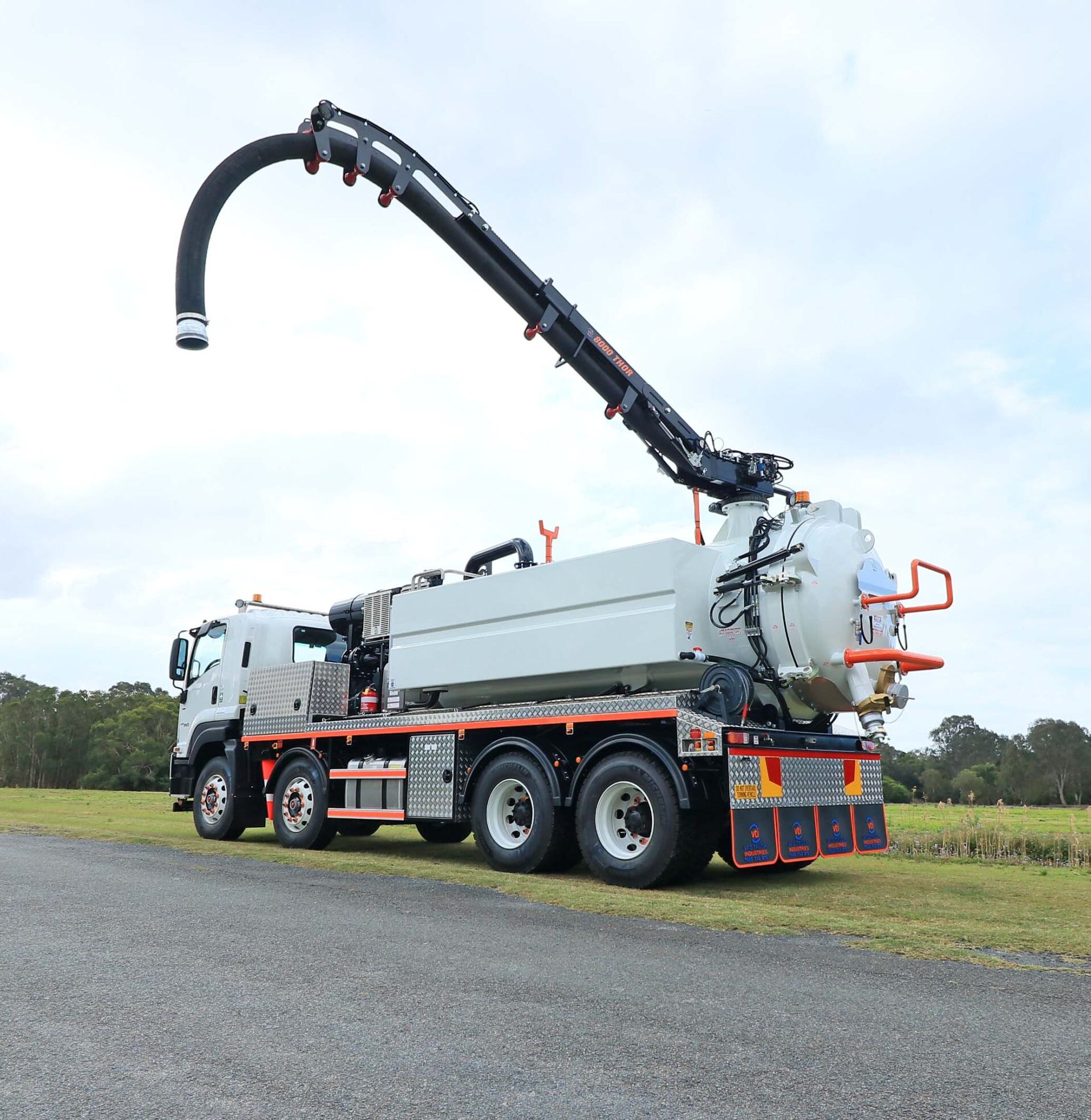

Hydro Vacuum Truck

The 8000L hydro vacuum excavation truck produces uncompromising reliable power, performance, capability and capacity.

Hydro excavation safely excavates in situations where normal excavation machinery cannot be used. This non-destructive form of digging can remove almost any kind of surface without damaging existing infrastructures such as telecommunications, fibre optics, Telstra cables and underground power lines, as well as around and under concrete and driveways.

Common usage includes:

  • Bulk non-destructive digging / hydro excavations
  • Underground services and pipeline locations
  • Confined space excavation through over and under obstacles at distance, overhead at height or underground at basement level.
  • Mud and drill spoil recovery
  • Removal and excavation of slurries, thick sludge, solid and liquid waste

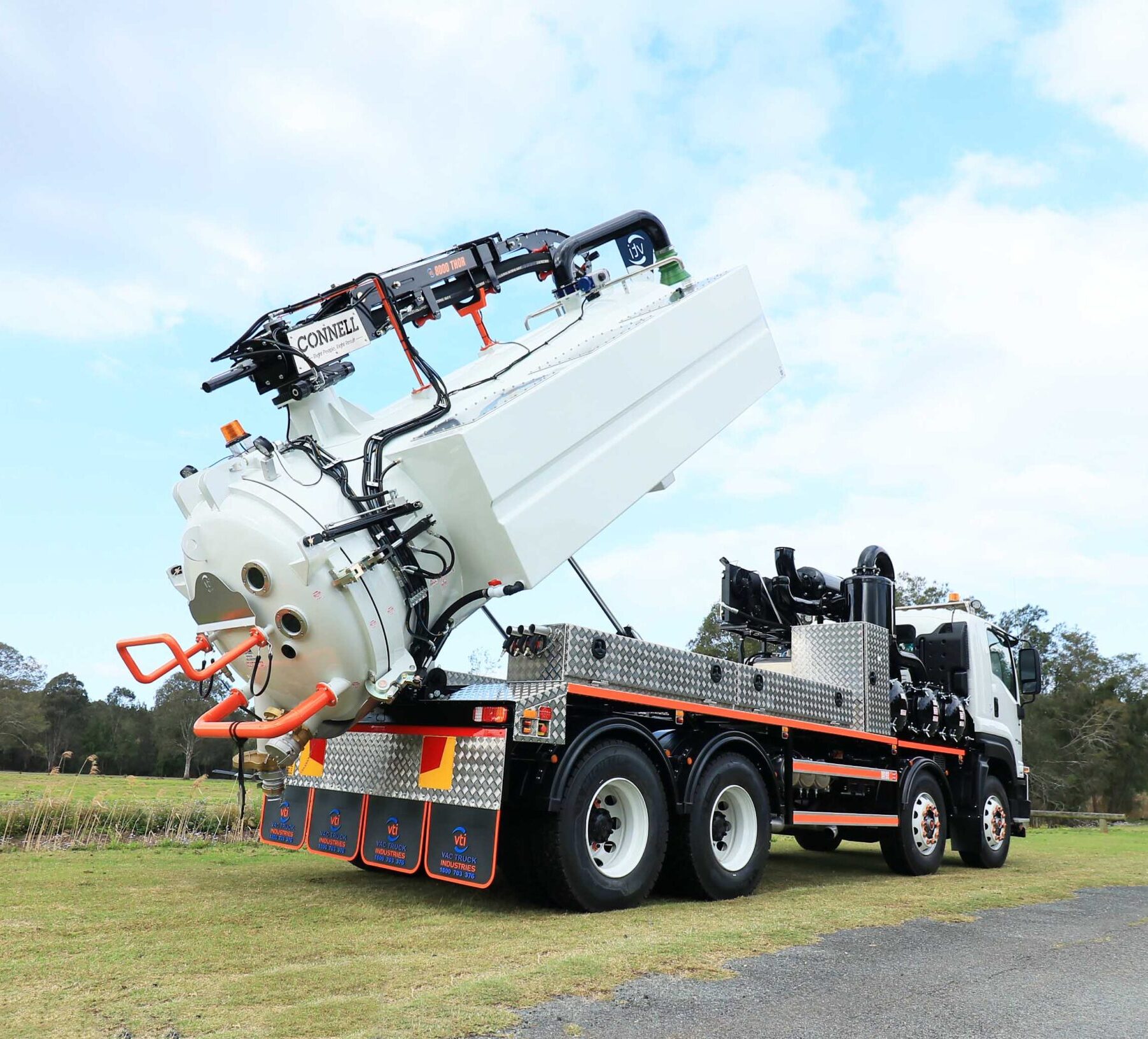

VTI Vac Truck

Spoil Tank And Blower

  • 8000L spoil tank capacity (10mm thickness) – designed and certified to AS1210
  • Jurop style locking system for spoil tank door
  • Hercules series – Jurop PVT 400, high mercury, air inducted – 1500cfm (28′ Hg)
  • Thor series – Jurop Helix 750, high mercury, air injected – 2500cfm (28′ Hg)
  • Available with Jurop PVT 400, high mercury, air injected – 1500cfm
  • Jurop pneumatic 4-way valve – vacuum and pressure (Hercules series only)
  • Butterfly travel and relief valves fitted for safety and compliance
  • Day (high) and night (low) option for blower operation

WATER TANK AND SYSTEM

  • 4000L capacity – water tanks combined
  • Water tanks baffled for safety and stability
  • 2″ stainless steel water fill system with isolation taps
  • Water level sight indicators on both tanks
  • Comet TW8036 water pump – 32l/m at 3600psi
  • Heavy-duty hose reel complete with 25m 3/8 high-pressure water hose with quick release fittings (dual hose reels and pump options available)
  • Lances – 1500mm, 2100mm and flexi (0.90 Suttner nozzles)

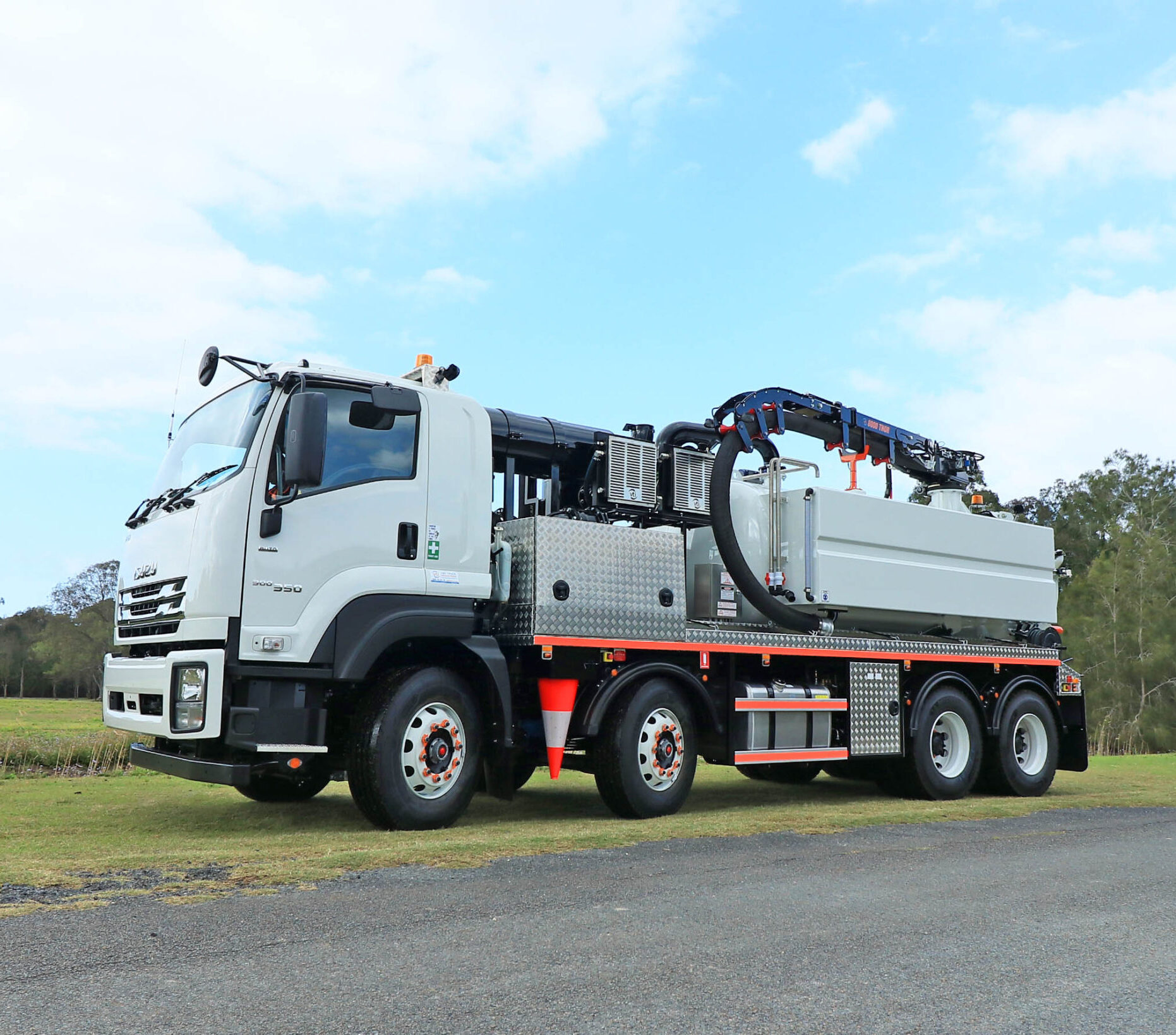

VTI Vacuum Truck

GENERAL

  • VTI full-length passenger side aluminum hose try storage – with tie-down points and straps for load containment
  • Unique VTI driver side storage box for tooling and equipment with integrated 3 lance holder box
  • Side intrusion bars with high visibility reflective tape
  • Starter and battery isolation switches with lockout facility. Emergency stops fitted in a key position on the tray
  • LED rotating lights and work lights fitted to the truck and spoil tank
  • Interlocks and warning alarms fitted to park brake, spoil tank, and boom
  • 20m x 4’ or 5’ polyurethane vacuum hose with fittings of choice
  • 9kg fire extinguisher with mounting bracket and notification decal
  • Full mine site compliant safety decals
  • Easy to clean baghouse and cyclone setup, accessible from the ground
  • Angled base on cyclone and baghouse for easy washout

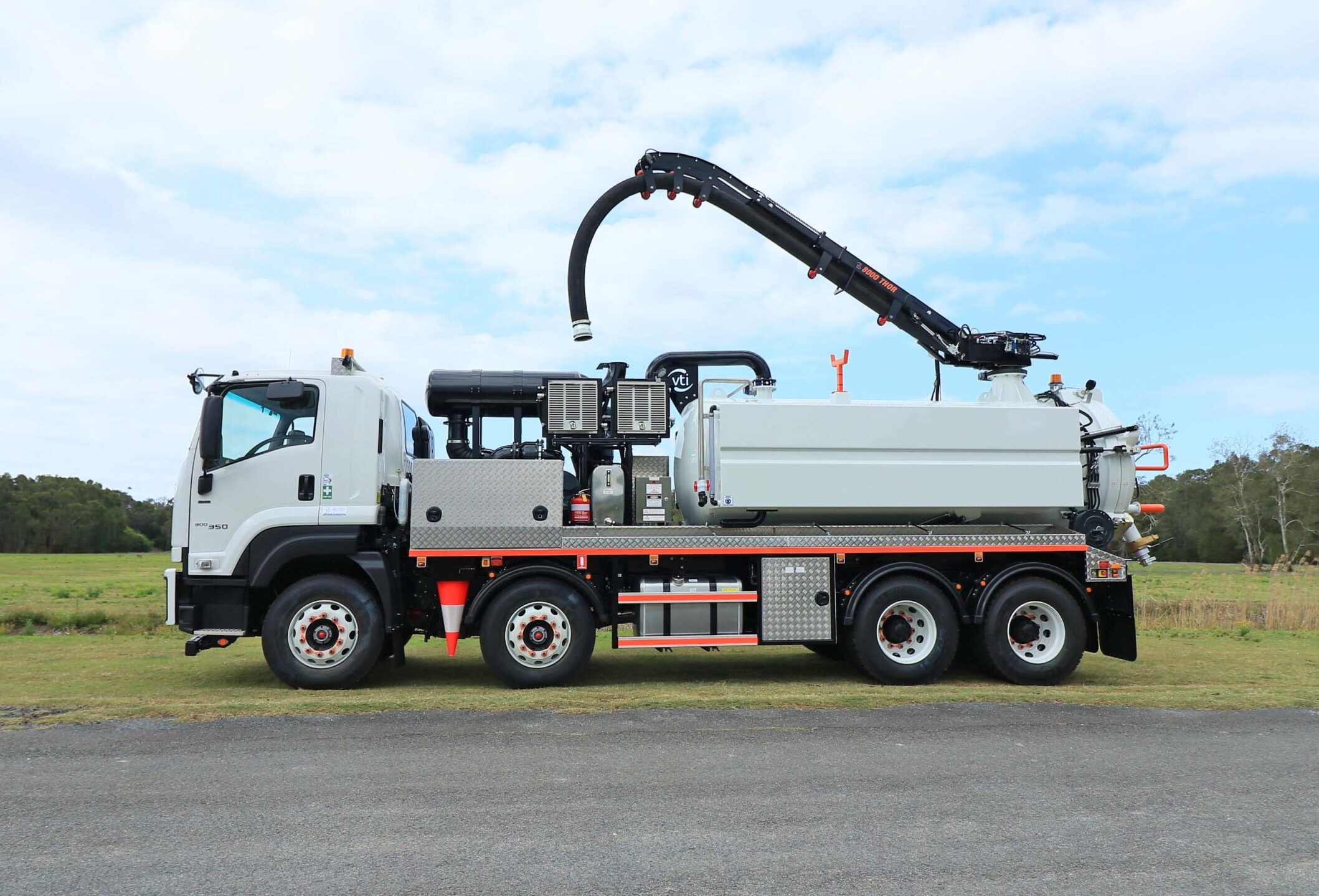

Hydro Vacuum Truck

HYDRAULIC SYSTEM

  • Dual PTOs with piston pumps
  • PTO with piston pump and Omsi split shaft assembly (Thor series)
  • Danfos PVG32 proportional control valve
  • 170ltr oil tank with twin oil coolers
  • All cylinders fitted with over centre valve

6″ BOOM ASSEMBLY

  • Full hydraulic remote-controlled boom with 2 x lodar remotes
  • 5’ or 6’ boom suction hose option
  • Plugin boom pendant control for an override of boom functions
  • 2 x LED work lights mounted at the front of the boom (if fitted)
